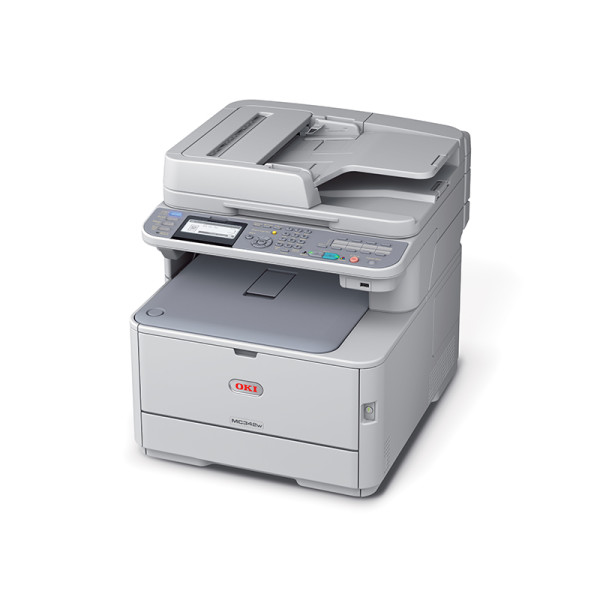

MC342w_34

MC342dnw

$359.00


All OKI products are expertly designed to work with the minimum need for technical support thanks to the technical advancements made.

However, if for any reason you are experiencing problems or are looking to upgrade by adding any additional accessories, the following pages will assist you. This support section also offers you help and advise so that you can achieve maximum impact with your OKI product.

Wireless network-ready A4 colour MFP for the micro business or home office

  • A4 colour 4-in-1 MFP, 1-5 users
  • 22ppm mono and 20ppm colour print speed
  • 350 sheet standard paper capacity
  • PCL/PS printer language emulation
  • RADF and Auto duplex as standard
  • Wireless network-ready
  • Mobile printing compatible

The MC342dnw delivers professional quality and reliability for micro businesses or home office workers that require print, scan, copy and fax functionality. Colour print speeds of 20ppm and mono print speeds of 22ppm, provides the user with the flexibility to manage their documents in-house. The MC342dnw is wireless network-ready, allowing you to place your MFP wherever is most convenient.

The MC342dnw offers as standard, duplex printing, scanning/copying, automatic RADF, and superior quality High Definition colour and mono A4 printing.

Print smart, saving time and money through printing in-house

Management and printing of your documents is so much simpler, combining High Definition colour printing with tools that give you the ability to create a full range of documents in-house, allowing you to effectively manage what you print and when you print it. Print business cards, banners (up to 1320mm), leaflets, presentations, booklets, CD/DVD labels and more, on a range of paper up to 220gsm.

Sharp, accurate scanning with useful document management functionality

Providing sharp, fast and accurate scanning, enabling you to digitise your documents clearly and with ease. Scan directly to a USB or network TWAIN, whilst LDAP provides direct access to contact and email data from an existing directory server.

Simple one touch copying with outstanding results

Combining LED scanning and printing for clear, sharp and fast results, offering superior and simple copying through an easy to use user interface with one touch buttons for all functions. Save regular copy settings and with ID Copy you can copy double sided ID cards on a single side.

Efficient and cost saving functionality

The MC342dnw is built on award winning digital LED technology that is inherently energy efficient with many features and functions that reduce your ongoing costs, including Eco, Deep Sleep and Auto Off modes, that reduces energy consumption to 0.5W when not in use.

Mobile printing

Connect to a network, wireless or web-enabled printer through a smartphone or tablet.  This printer is Google Cloud Print Ready*, as well as being compatible with AirPrint* by Apple Inc, without having to connect directly to a printing device.

Reliable printing with a 3-year warranty as standard

OKI’s ultra-reliable, award winning digital LED technology has fewer moving parts, which means less wear and tear, for exceptional reliability. This, plus durable components and a robust, built-to-last design, allows us to provide users with the peace of mind of a 3-year warranty upon registration within 30 days of purchase.



*Firmware upgrade maybe required.  Please contact your local OKI representative for further details on compatibility.

Key Features

  • DescriptionA4 colour 4-in-1 MFP
  • Number of users1 to 5

Printer

  • Print SpeedA4: 20ppm colour, 22ppm mono
  • Time to first print (TTFP)9 seconds colour, 8.5 seconds mono
  • Warm up timeUp to 60 seconds from power on and up to 32 seconds from power save
  • Processor speed533MHz

Scan

  • Scan ResolutionUp to 1200 x 1200dpi
  • Scan SpeedUp to 20ppm colour, up to 30ppm mono
  • Colour depthInput 48-bit / Output 24-bit
  • Document input50-sheet Reverse Automatic Document Feeder (RADF), flatbed scanner
  • Contrast7 Levels
  • FormatPDF, M-TIFF, JPEG, XPS
  • AddressbookLDAP, 100 E-mail addresses and 20 group addresses
  • Scan toFTP, HTTP, USB memory, E-mail, TWAIN, CIFS

Copy

  • First copy out time (FCOT)Less than 14 seconds colour, less than 12 seconds mono
  • Copy speedUp to 20cpm colour and up to 22cpm mono
  • Copy resolutionUp to 600 x 600dpi
  • Reduction/EnlargementZoom 25-400%
  • Maximum copies99

Fax

  • Fax connectivityRJ11 x 2 (Line/Tel), PSTN, PBX Line
  • Fax speedITU-T G3(Super G3) up to 33.6kbps, 3 seconds/page
  • Speed dialsFast dialing
  • GroupsUp to 20
  • BroadcastMaximum 100
  • Fax memory4MB (approx. 200 pages transmit and receive)

Operator panel

  • LCD panelSingle simplified blue backlit graphics panel: 84.1mm (W) x 33.6mm (H); Resolution: 320 x 128 dots
  • Key pad12 alpha/numeric keys, 4 main function buttons (Copy, Scan, Print, Fax), Color & Mono Start, Status, Setting, Help, One Touch & Shift keys, 6 main navigation buttons (Back, Up, Down, Left, Right, OK), Clear, Stop, Power Save, Reset/Log Out

Interface and Software

  • Connectivity10/100 TX Ethernet, USB 2.0 Device IF, USB 2.0 Host IF
  • Printer languagePCL6 (XL3.0), PCL5c, SIDM (IBM-PPR, EPSON-FX)
  • Network & protocolsAll major network protocols supported via ethernet card with internal web server for printer and network card set-up and management. TCP/IPv4&v6, SMTP, POP3, HTTP, SNMPv1&v3, DHCP, DNS, LPR, Port9100, BOOTP, ARP, FTP, CIFS, LDAP, SLP, Bonjour. NetWare, EtherTalk, NetBEUI, LLTD, Web Service on Devices, AirPrint, Google Cloud Print. Wireless LAN Protocol (IEEE802.11b, IEEE802.11g, IEEE802.11n, Infrastructure Mode, WEP, WPA(TKIP), WPA2(AES), WPS-PBC, WPS-PIN, Open system authentication, Shared key authentication, IEEE802.1x authentication)
  • OS CompatibilityWindows XP (32-bit & 64-bit) / Server 2003 (32-bit & 64-bit) / Server 2008 (32-bit & 64-bit) / Server 2008 R2 (64-bit) / Vista (32-bit & 64-bit) / Windows 7 (32-bit & 64-bit) / Windows 8 (32-bit & 64-bit); Mac OS X 10.3.9 to 10.8
  • Advanced networking and securityIP Filtering, MAC Filtering, SSL/TLS, NIC Driver (IC+), WindowsRally, EmailAlert, EAP(IEEE802.1X), IPSec
  • UtilitiesTemplate Manager, Color Correct, OKI LPR, Color Swatch Utility, PrintSuperVision.net, PrintSuperVision Multiplatform, Print Job Accounting Server, Print Job Accounting Client, Web Driver Installer, Network Card Setup, Configuration Tool, ICC Color Profiles, PS Gamma Adjuster, Profile Assistant, PDF Direct Print, Actkey
  • Document managementNuance PaperPort SEv11, Nuance OmniPage SEv16

Print quality

  • ResolutionProQ2400 Multi-level Technology, 1200 x 600dpi, 600 x 600dpi
  • EnhancementsAuto Color Balance, Photo Enhance via driver

Typefaces

  • Printer fontsScalable: 87 PCL Fonts; PCL Bitmap fonts: Lineprinter OCR-A/B, USPS ZIP Barcode
  • Barcodes11 types of one dimension with 27 variations: UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, Interleaved2of5, Code39, Code 128, EAN/UCC-128, CODABAR, ZIP+4POSTNET, USPS Zip Barcode; 1 type of two dimension: PDF417

Paper Handling

  • Paper capacityTray 1: 250 sheets of 80gsm; Multi-purpose tray: 100 sheets of 80gsm; RADF: 50 sheets of 80gsm
  • Maximum paper capacity350 sheets of 80gsm
  • Paper sizesTray 1: A4, A5, B5, A6; Multi-purpose tray: A4, A5, B5, A6, Envelopes (C5, DL, Com-9, Com-10, Monarch), Index Card (3” x 5”) (75 x 125mm), Photo Size (4” x 6”, 5” x 7”) (100 x 150mm, 125 x 175mm), Custom Size (up to 1320mm length including banners); Duplex: A4, A5, B5; RADF: A4, A5, B5, A6 (A6 simplex only)
  • Paper weightTray 1: 64 to 176gsm; Multi-purpose tray: 64 to 220gsm; Duplex: 64 to 176gsm; RADF: 60 to 105gsm
  • DuplexStandard
  • Paper outputFace Down: 150 sheets of 80gsm; Face Up: 100 sheets of 80gsm

General Features

  • Memory (RAM)Standard: 256MB; Maximum: 768MB
  • Operating temperature/ humidity10°C to 32°C (17°C to 27°C recommended)/ 20% to 80% RH (50% to 70% RH recommended)
  • Storage temperature/ humidity-10°C to 43°C/ 10% to 90% RH
  • Power supplySingle phase 220 to 240VAC, frequency 50-60Hz +/- 2%
  • Power consumptionTypical: 500W; Max: 1170W; Idle: 100W; Power Save: <20W; Deep Sleep: <1.5W; Auto-Off: <0.5W
  • Noise levelOperating: 52dB(A) or less (copy); Standby: 33dB(A); Power save: Inaudible
  • Dimensions (HxWxD)444 x 427 x 509mm
  • Weight29kg
  • Duty cycle (Maximum)30,000 pages/month
  • Duty cycle (Recommended)Up to 2,000 pages/month
  • Warranty3 years extended warranty upon registration within 30 days of purchase
